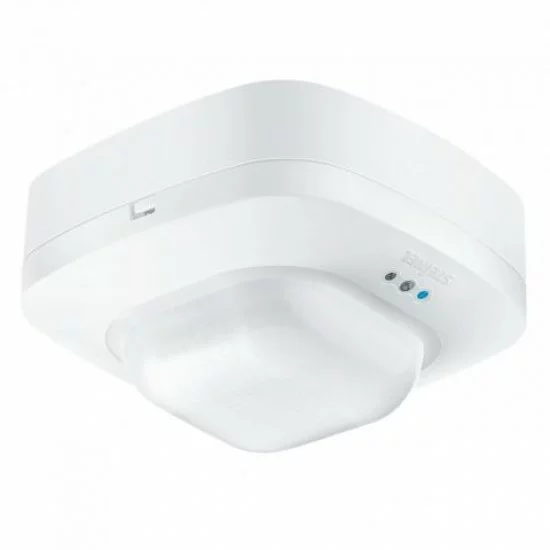

Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273

Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Delivery up to 2-3 weeks
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
Steinel presence sensor IR Quattro HD 24m DALI plus, 360°, IP20, 035273
255.00€
Ex Tax: 210.74€
  • Stock: Delivery up to 2-3 weeks
  • Model: 035273
  • Weight: 0.15kg

Inform about availability

Captcha

 Intelligent infrared presence detector IR Quattro HD DALI plus with a wide range of additional functions, ideal for classrooms, open-plan offices and multi-storey car parks, mounting height up to 10 m, with three lighting channels (DALI addressable) for up to 64 luminaires, easily set up via app. Additional floating relay, constant-lighting control and variable light-level functions, button interface for all 3 lighting channels for controlling and dimming the floating relay (lighting mode), remotely controllable via Smart Remote. 035273

Voltage, V 220-240V

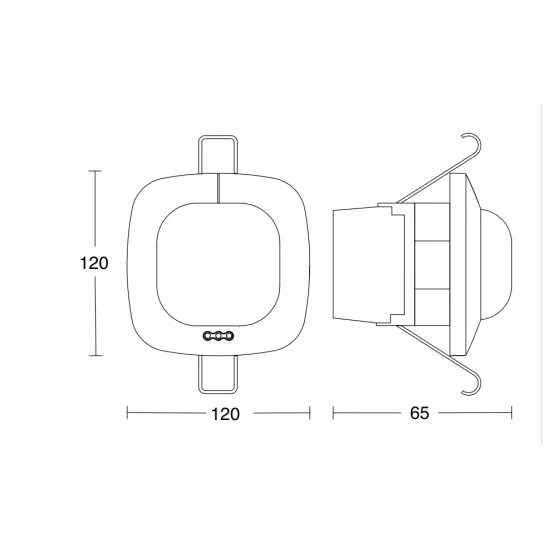

Width, mm 120 mm
Height, mm 65 mm
Length, mm 120 mm
Color white

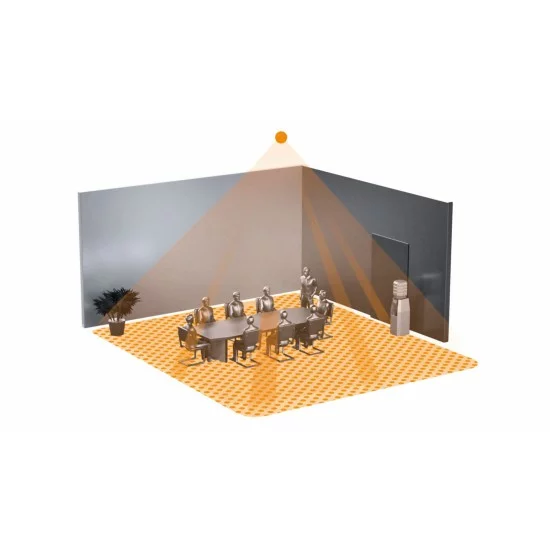

The range of motion detection (m) 20 x 20 m (400 m²)
Detection angle 360°
Time setting 5 s – 60 Min
Ambient light 10 – 1000 lx
Installation height 2.5 - 10 m
IP code IP20





Characteristics
IP code IP20
Manufacturer Steinel
Type Infrared
Detection angle 360°
The range of motion detection (m) 20m
